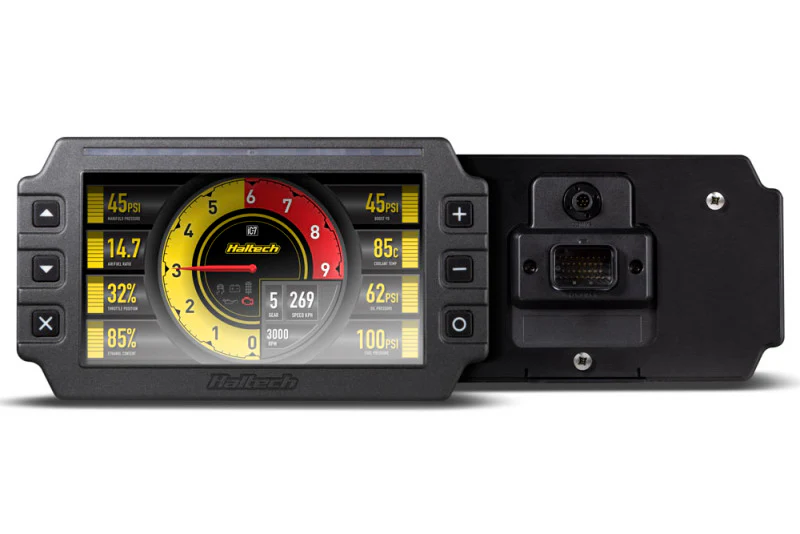

With a crisp, clear and full colour display, the all new Haltech iC-7 Display Dash lets you see things in a brand new way.

Designed and manufactured in Australia with motoring enthusiasts in mind, the iC-7 offers market-leading features in a unique, state-of-the-art package.

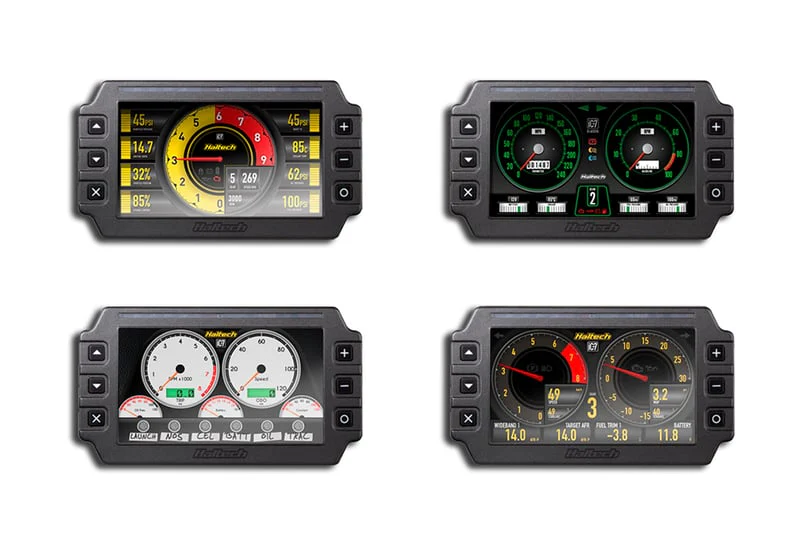

Featuring custom screen displays,I/O sharing, datalogging, auto-dimming ambient light reactive brightness, user-programmable multi-colour shift light bar, the iC-7 connects directly to all current Haltech ECUs via a CAN network. The OBD-II iC-7 is preconfigured to connect directly (via CAN) to most late model vehicles (approx 2008-on) using the factory OBD-II port.

• Ideal replacement for individual analogue gauge clusters.

• Easy to install and configure.

• User adjustable brightness control with automatic dimming.

• User configurable channels, units and alarms.

• User definable Inputs & Outputs

• 9 x Analog Voltage Inputs (AVI)

• 3 x Digital Pulsed Inputs (DPI)

• 1 x Tachometer Input

• 4 x Digital Pulsed Outputs (DPO)

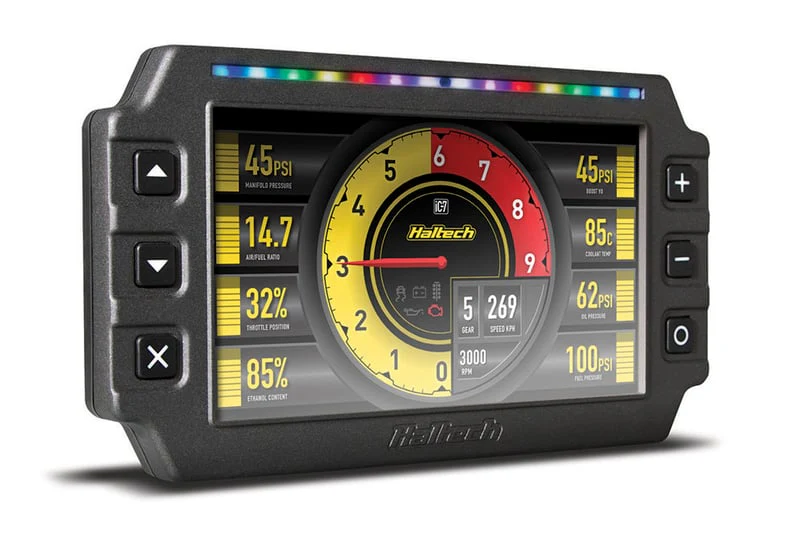

• 14 programmable, seven colour shift light LEDs.

• On-board datalogging (512MB)

• Controlled via easily accessible, face-mounted control buttons.

• Configuration via Haltech software and USB cable.

• IP64 (Dust-tight and protected against water splashes).

Suits: Preconfigured to connect directly (via CAN) to most late model vehicles (approx 2008-on) using the factory OBD-II port.

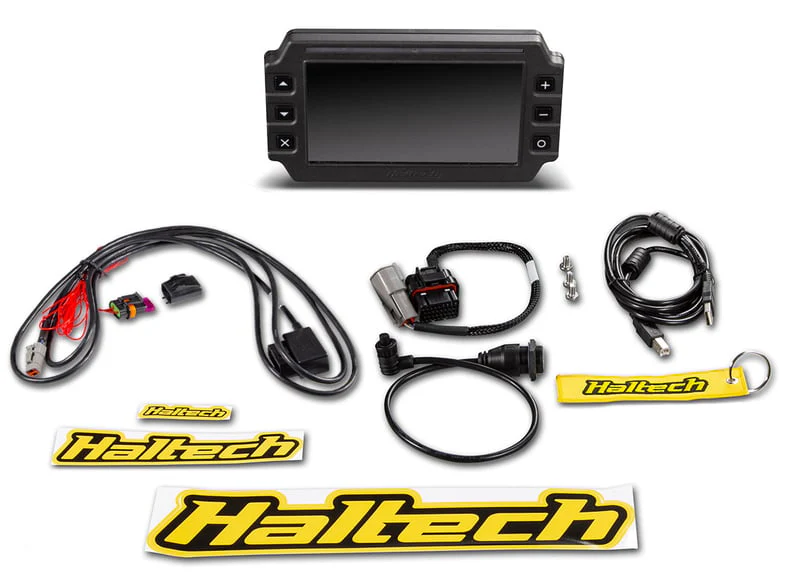

Includes: Haltech iC-7 Display Dash, 34 Pin main connector harness (includes spare pins for input wiring), OBD-II to DTM-4 CAN cable 1.4m (55in), USB to M5 right angle cable, USB Cable, Mounting Screws, Quick Start Guide, Haltech stickers and a fabric keyring tag

IMPORTANT EMISSIONS NOTICE:
In many states, it is unlawful to tamper with your vehicle's emissions equipment. Haltech products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway. Using Haltech products for street/road use on public roads or highways is prohibited by law unless a specific regulatory exemption exists (more information can be found on the SEMA Action Network website www.semasan.com/emissions for state by state details in the USA). It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before purchasing, using or installing any Haltech product.
