ECU designed from the ground up to suit Toyotas popular JZ engine platform

Start-up is a breeze thanks to the new Set-up Wizard in our NSP software

Comes complete with an easy-to-install harness to suit multiple Toyota JZ applications

Easy integration with Haltech dashes, PDMs, sensor kits, and accessories

Kit Supports:

1JZ-GTE Non-VVT-i

1JZ-GE VVT-i

1JZ-GTE VVT-i

2JZ-GTE Non-VVT-i

2JZ-GE VVT-i

2JZ-GTE VVT-i

Manual Transmissions Only - Kit supplied with harness to suit R154 Transmission

Harness is supplied with ignition harness to suit R35 Coil conversion, Conversion kit available to be purchased separately from Haltech see part number - HT-120200

Toyota Electronic Throttle Control System - Intelligent (ETCS-i) - aka semi DBW, Distributor ignition systems, Wasted spark ignition systems, Low impedance injectors , Sequential twin turbo setup, 1JZ OEM Coolant Temperature Sensor

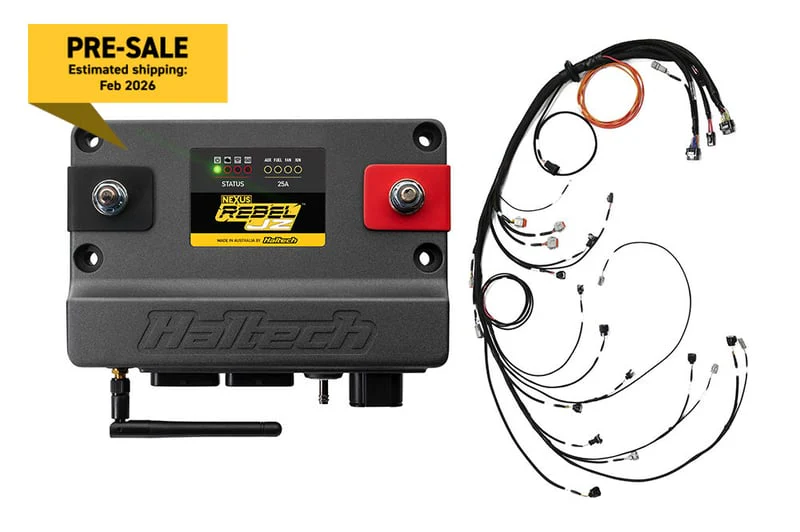

• HT-220002 - Nexus Rebel JZ ECU
• HT-186400 - Nexus Rebel JZ main terminated harness
• HT-186120 - Denso Alternator Harness
• HT-186121 - Bosch Alternator Harness
• HT-186122 - Tundra Alternator Harness
• HT-187005 - Toyota R154 transmission harness
• HT-186160 - Nexus Rebel JZ cable throttle sub-harness
• HT-186004 - i6 Timer (EV1) primary injector harness
• HT-186063 - i6 R35 COP ignition harness

• Bosch LSU 4.9 Sensor
• Weld on fitting for O2 Sensor
• Air Temperature Sensor M14 x 1.5
• Weld on fitting for Air Temp Sensor
• 2 x Bosch Knock Sensors and adaptors
• 1 x 150 PSI Fuel & Oil Pressure Sensor
• 1 x 1/8BSPT male to 1/8NPT female adapter (Oil pressure sensor fitting)

Notes: Does Not Support Toyota Electronic Throttle Control System - Intelligent (ETCS-i) - aka semi DBW, Distributor ignition systems, Wasted spark ignition systems, Low impedance injectors , Sequential twin turbo setup, 1JZ Coolant Temperature Sensor

IMPORTANT EMISSIONS NOTICE:
In many states, it is unlawful to tamper with your vehicle's emissions equipment. Haltech products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway. Using Haltech products for street/road use on public roads or highways is prohibited by law unless a specific regulatory exemption exists (more information can be found on the SEMA Action Network website www.semasan.com/emissions for state by state details in the USA). It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before purchasing, using or installing any Haltech product.
