Keep an eye on those pressures with our simple analog pressure sensor
5 volt sensor **DO NOT POWER WITH 12 VOLT SOURCE**

To use with the P3 Gauge, simply select the "PS" (pressure sensor) option for one of the two universal analog inputs.

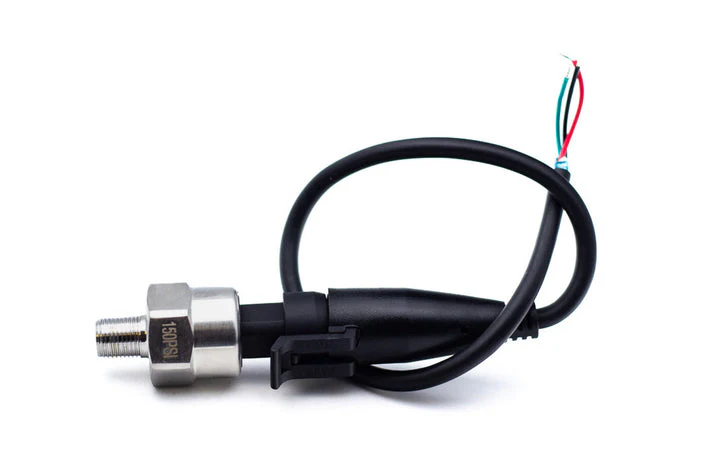

0-150 PSI pressure sensor

• Adds pressure readout to P3 gauge using analog input
• Can measure oil, water, or air pressure
• 10" wiring harness
• 1/8" NPT fitting
• Can "T" into oil pressure galley along with factory oil pressure switch

Can be used to monitor

• Engine oil pressure
• Air ride pressure
• Coolant system pressure

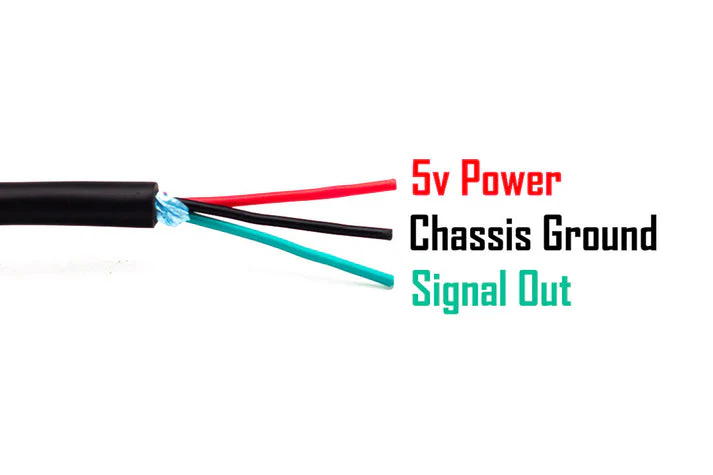

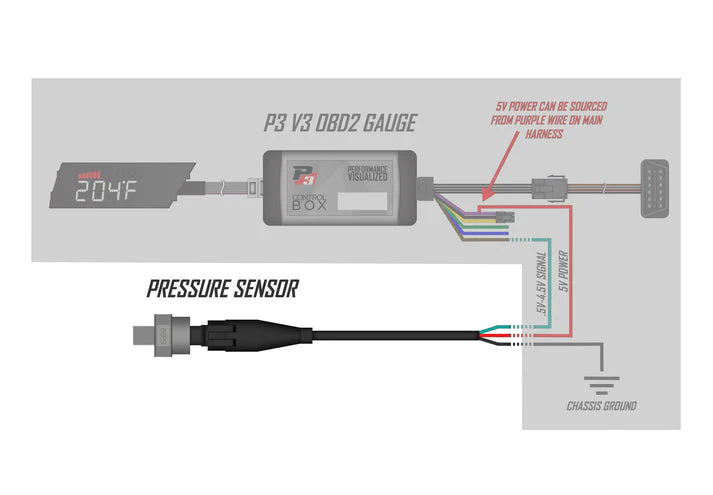

Simple 3 wire harness

• Red - 5 volt power supply (can be sourced from purple wire on P3 harness)
• Black - Chassis ground
• Green - Signal output (routed to brown or blue wire on P3 harness)
