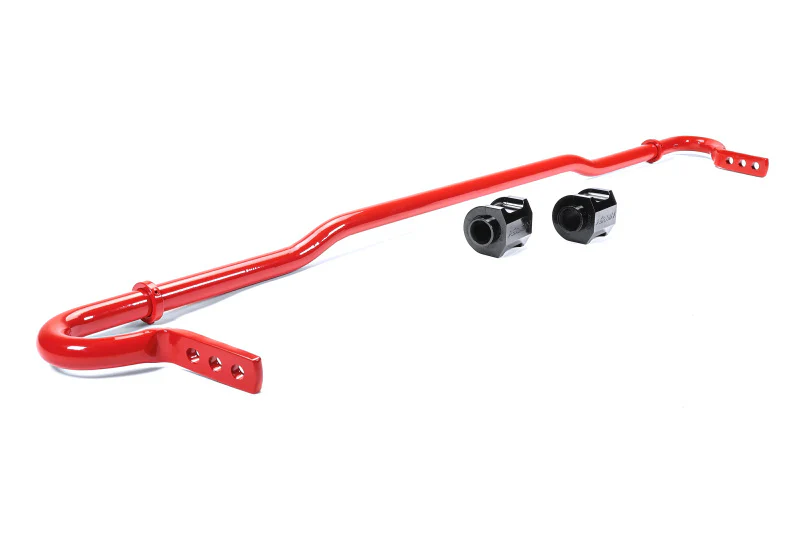

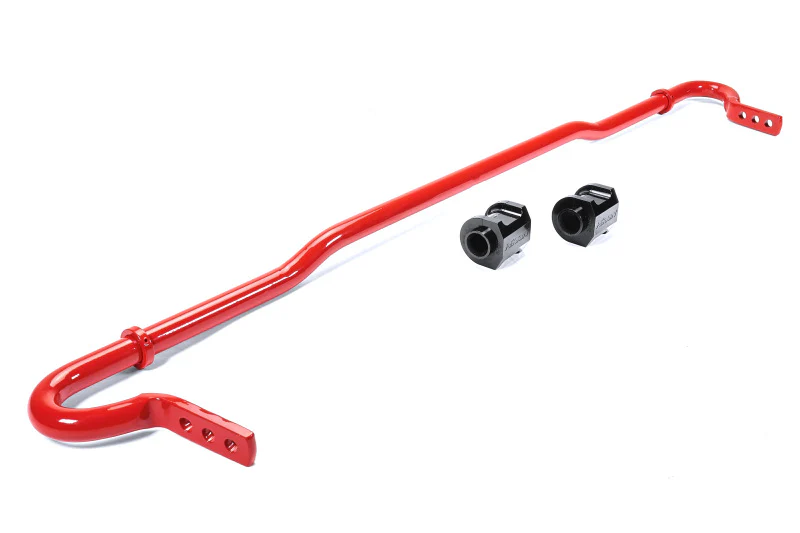

PERRIN 22mm Rear Sway Bar - Subaru WRX / STi 2008-2021 & BRZ / FR-S / 86 / GR86 2013+

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

PERRIN 22mm Rear Sway Bar - Subaru WRX / STi 2008-2021 & BRZ / FR-S / 86 / GR86 2013+

PERRIN 22mm Rear Sway Bar - Subaru WRX / STi 2008-2021 & BRZ / FR-S / 86 / GR86 2013+

Upgrade your car with a PERRIN Rear Swaybar to improve handling, reduce body roll, and fine-tune cornering performance.

PERRIN Swaybars are designed to improve handling by reducing body roll and increasing cornering performance. By reducing body roll, the lateral loads on the tires become more evenly distributed, resulting in enhanced cornering grip and overall performance improvements.

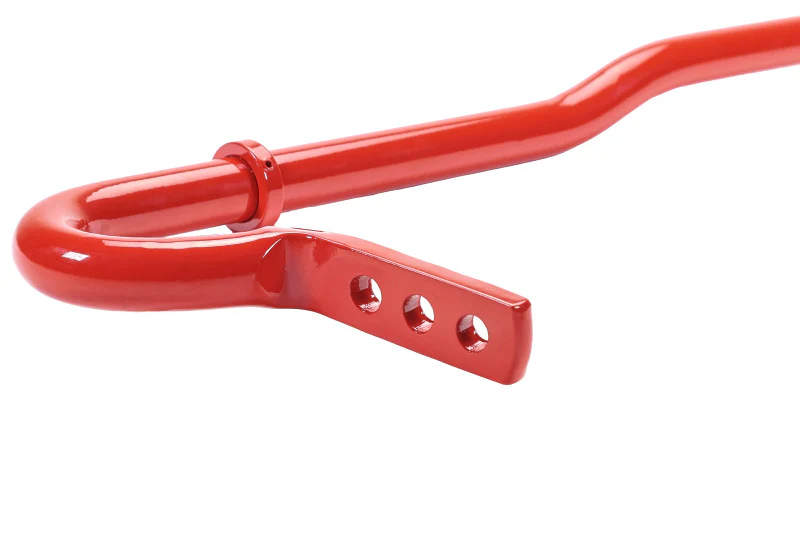

PERRIN Rear Swaybars feature multiple endlink mounting points, offering a customizable setup to suit your driving style. This adjustability lets you fine-tune your vehicle's handling for optimal performance on the track or the street.

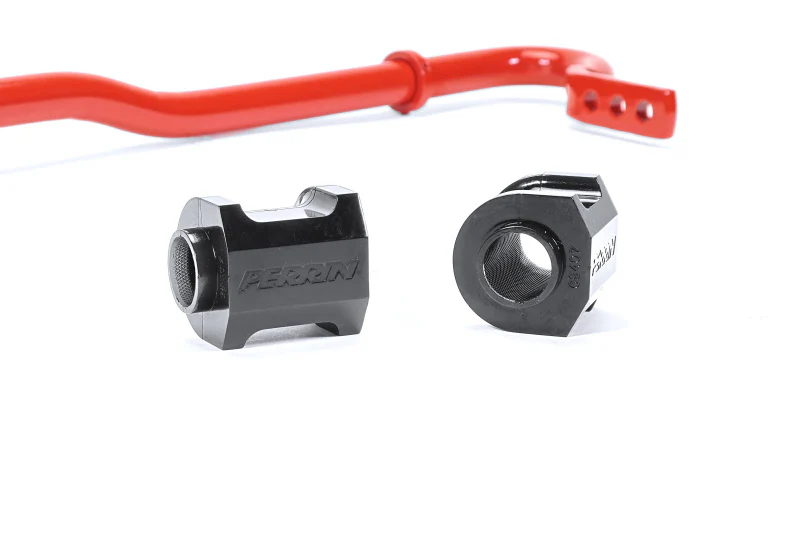

All PERRIN Rear Swaybars come with custom polyurethane bushings, designed to provide a crisp response and improved turn-in. Specially carved pockets in the bushing surface help extend the time between re-greasing.

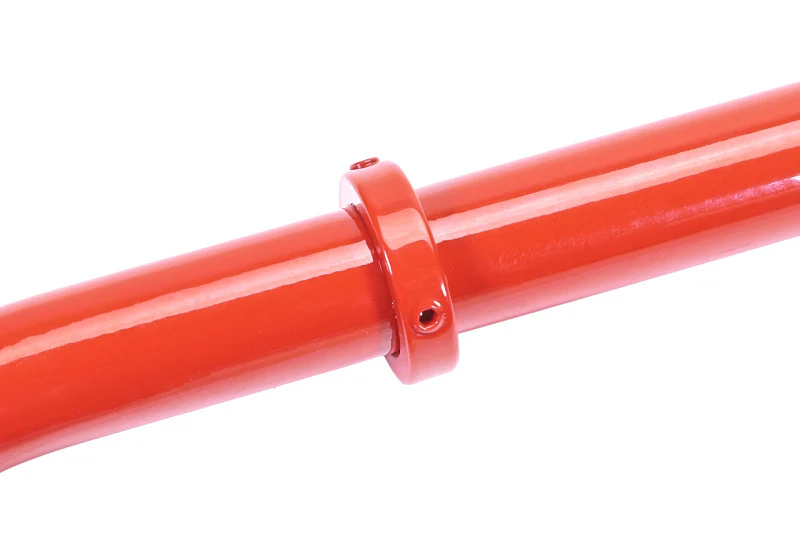

Depending on the vehicle application, some PERRIN Swaybars include centering rings designed to prevent swaybar movement during hard cornering, keeping the swaybar properly aligned and ready for the next turn.

A swaybar is a suspension component that connects a vehicles left and right wheel using short lever arms. Its main purpose is to increase the suspensions roll stiffness, helping the vehicle resist body roll during turns without sacrificing the vertical spring rate.

Specifications

WRX/STI:

  • 22mm Bar Hole #1 40% Stiffer than 19mm OEM bar
  • 22mm Bar Hole #2 85% Stiffer than 19mm OEM bar
  • 22mm Bar Hole #3 140% Stiffer than 19mm OEM bar

2013-2016 BRZ/FR-S:

  • 22mm Bar Hole #1 400% Stiffer than 14mm OEM bar
  • 22mm Bar Hole #2 535% Stiffer than 14mm OEM bar
  • 22mm Bar Hole #3 729% Stiffer than 14mm OEM bar

2017-2020 BRZ/86:

  • 22mm Bar Hole #1 280% Stiffer than 15mm OEM Bar
  • 22mm Bar Hole #2 380% Stiffer than 15mm OEM Bar
  • 22mm Bar Hole #3 390% Stiffer than 15mm OEM Bar

2022-2025 BRZ/GR86:

  • 22mm Bar Hole #1 400% Stiffer than 14mm OEM bar
  • 22mm Bar Hole #2 535% Stiffer than 14mm OEM bar
  • 22mm Bar Hole #3 729% Stiffer than 14mm OEM bar

In The Box

  • (1) PERRIN Rear Swaybar
  • (2) OEM Rear Swaybar Bushings
  • (1) Grease Packet
  • (1) PERRIN License Plate Frame
  • Warranty & Instructions
$238.00
PERRIN 22mm Rear Sway Bar - Subaru WRX / STi 2008-2021 & BRZ / FR-S / 86 / GR86 2013+—
$238.00

Product Information

Shipping & Returns

Description

Upgrade your car with a PERRIN Rear Swaybar to improve handling, reduce body roll, and fine-tune cornering performance.

PERRIN Swaybars are designed to improve handling by reducing body roll and increasing cornering performance. By reducing body roll, the lateral loads on the tires become more evenly distributed, resulting in enhanced cornering grip and overall performance improvements.

PERRIN Rear Swaybars feature multiple endlink mounting points, offering a customizable setup to suit your driving style. This adjustability lets you fine-tune your vehicle's handling for optimal performance on the track or the street.

All PERRIN Rear Swaybars come with custom polyurethane bushings, designed to provide a crisp response and improved turn-in. Specially carved pockets in the bushing surface help extend the time between re-greasing.

Depending on the vehicle application, some PERRIN Swaybars include centering rings designed to prevent swaybar movement during hard cornering, keeping the swaybar properly aligned and ready for the next turn.

A swaybar is a suspension component that connects a vehicles left and right wheel using short lever arms. Its main purpose is to increase the suspensions roll stiffness, helping the vehicle resist body roll during turns without sacrificing the vertical spring rate.

Specifications

WRX/STI:

  • 22mm Bar Hole #1 40% Stiffer than 19mm OEM bar
  • 22mm Bar Hole #2 85% Stiffer than 19mm OEM bar
  • 22mm Bar Hole #3 140% Stiffer than 19mm OEM bar

2013-2016 BRZ/FR-S:

  • 22mm Bar Hole #1 400% Stiffer than 14mm OEM bar
  • 22mm Bar Hole #2 535% Stiffer than 14mm OEM bar
  • 22mm Bar Hole #3 729% Stiffer than 14mm OEM bar

2017-2020 BRZ/86:

  • 22mm Bar Hole #1 280% Stiffer than 15mm OEM Bar
  • 22mm Bar Hole #2 380% Stiffer than 15mm OEM Bar
  • 22mm Bar Hole #3 390% Stiffer than 15mm OEM Bar

2022-2025 BRZ/GR86:

  • 22mm Bar Hole #1 400% Stiffer than 14mm OEM bar
  • 22mm Bar Hole #2 535% Stiffer than 14mm OEM bar
  • 22mm Bar Hole #3 729% Stiffer than 14mm OEM bar

In The Box

  • (1) PERRIN Rear Swaybar
  • (2) OEM Rear Swaybar Bushings
  • (1) Grease Packet
  • (1) PERRIN License Plate Frame
  • Warranty & Instructions
