Unitronic 5" Intake System w/ Air Guide - Audi RS3 2017+ / TT RS 2018-2022

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Product image 11
Product image 12
Product image 13
Product image 14
Product image 15
Product image 16
Product image 17
Product image 18
Product image 19

Unitronic 5" Intake System w/ Air Guide - Audi RS3 2017+ / TT RS 2018-2022

Unitronic 5" Intake System w/ Air Guide - Audi RS3 2017+ / TT RS 2018-2022

Mandatory DV Adapter selection required unless using a BOV.

Unitronic's new super-high-flow 5" Intake System for 2.5TFSI® EVO (DAZ/DNW/DXH) vehicles maximizes airflow with unbeatable quality construction fitment aesthetics and turbo induction sounds.

Featuring a massive 7" velocity stack and 7" air filter this Intake System flows 292% more than stock and is the perfect upgrade for Stage 1 stock turbo vehicles up to Stage 3 hybrid level and beyond. Combined with Unitronic's Front Air Guide which closely follows the contours of the engine and modular DV or BOV provisions this system will exceed all of your expectations.

Fully compatible with the 8S TTRS® 8V.2 RS3® 8Y RS3 and 8Y.2 RS3 in conjunction with the Unitronic 4" Turbo Inlet Elbow.

NOTE: Mandatory DV Adapter selection required unless using a BOV (blow off valve).

Features / Benefits
  • Super-high-flow 5-inch aluminum intake system
  • Integrated 7" velocity stack (V-Stack)
  • Matching 7" high-flow air filter
  • Flows 292% more than stock
  • Durable wrinkle black powder-coated finish
  • Direct bolt-on installation (4" Turbo Inlet Required)
  • OEM DV or BOV compatible
  • Factory chassis mount integration
  • Platform-specific intake tube adapters
  • Optimized under hood packaging

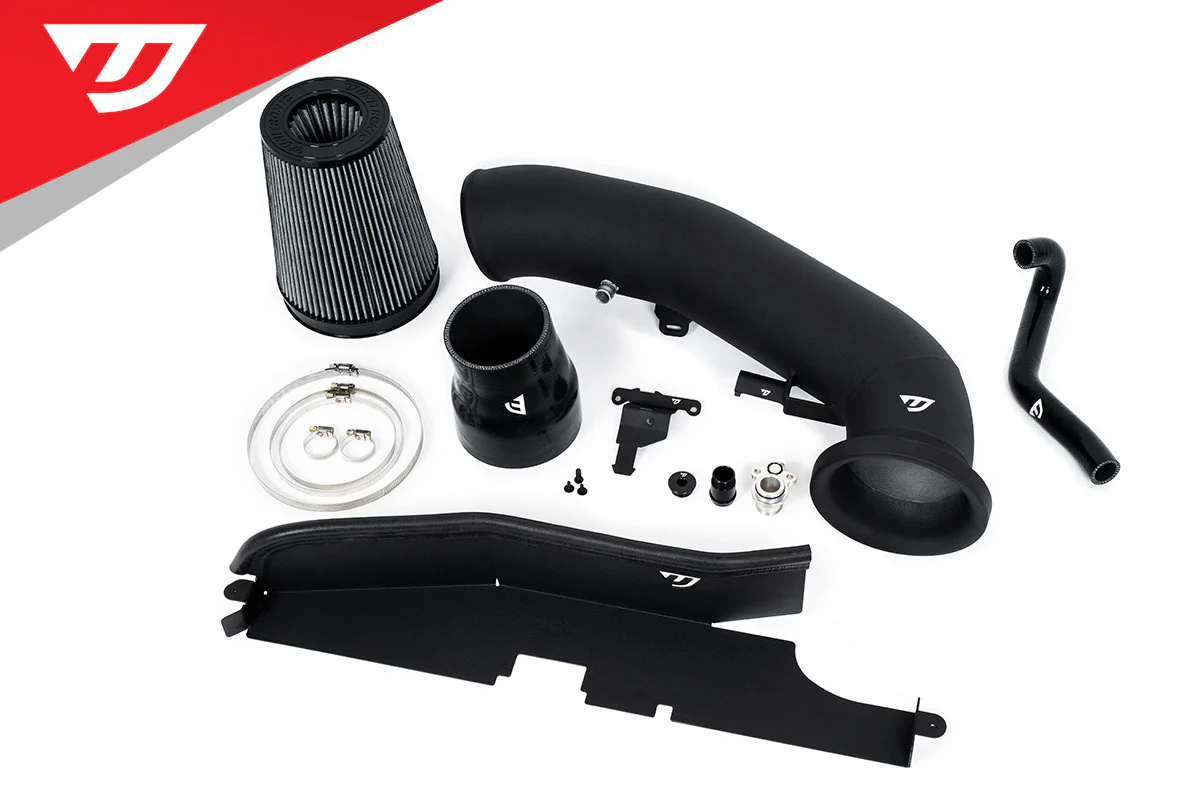

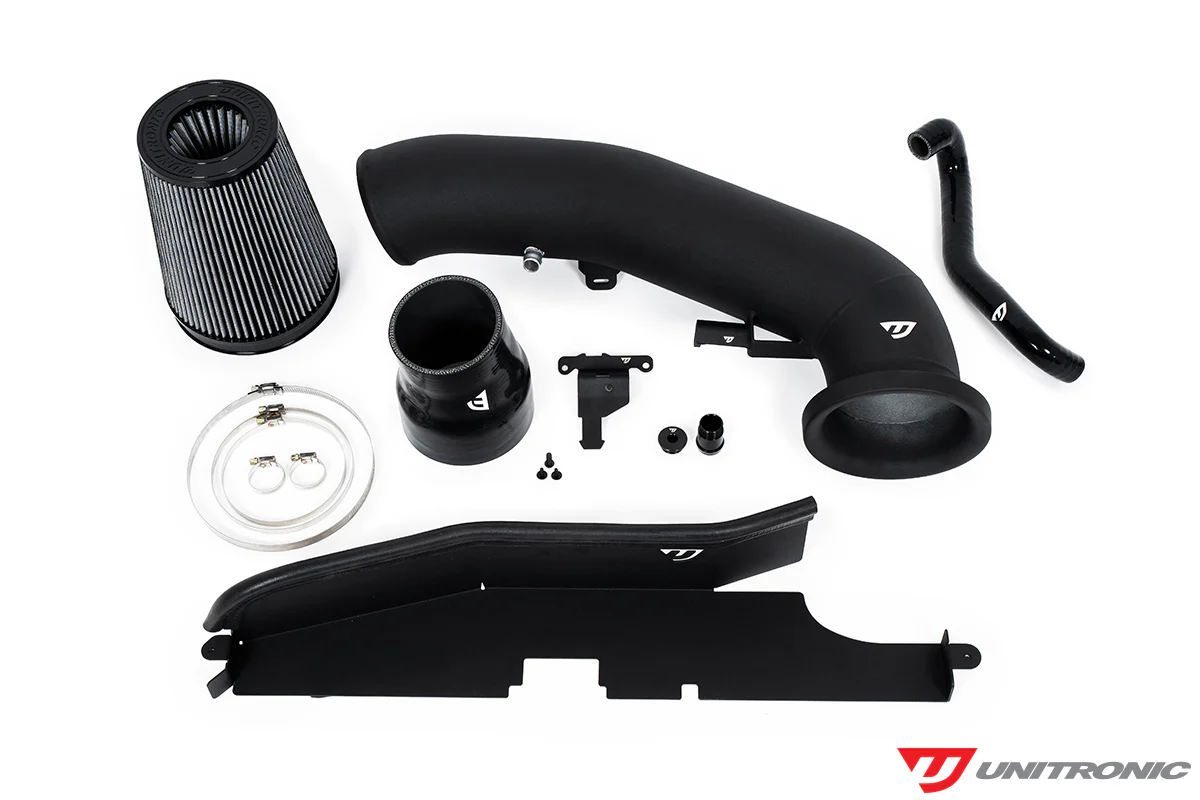

Hardware Included
  • Unitronic 5" Intake Tube

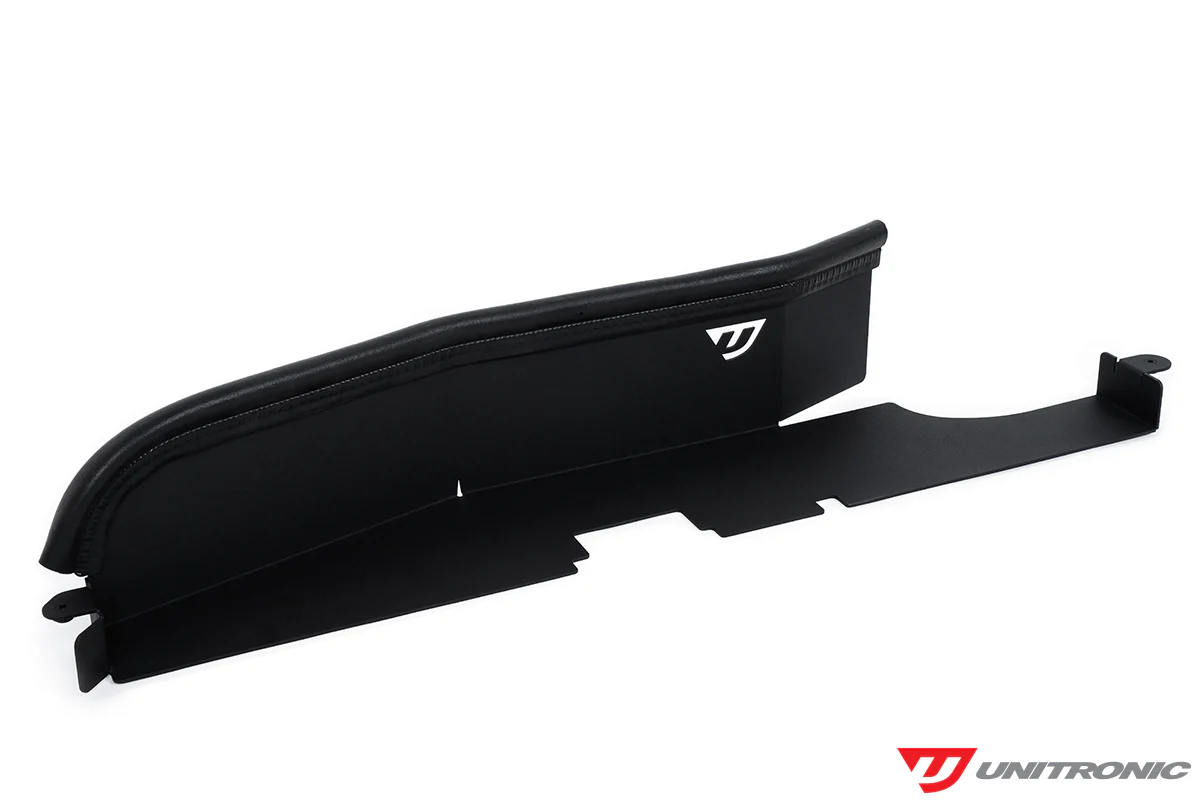

  • Unitronic Air Guide
  • Unitronic 7" Air Filter
  • 4" to 5" Silicone Coupler
  • DV Port Fitting
  • Hex Block Off Plug

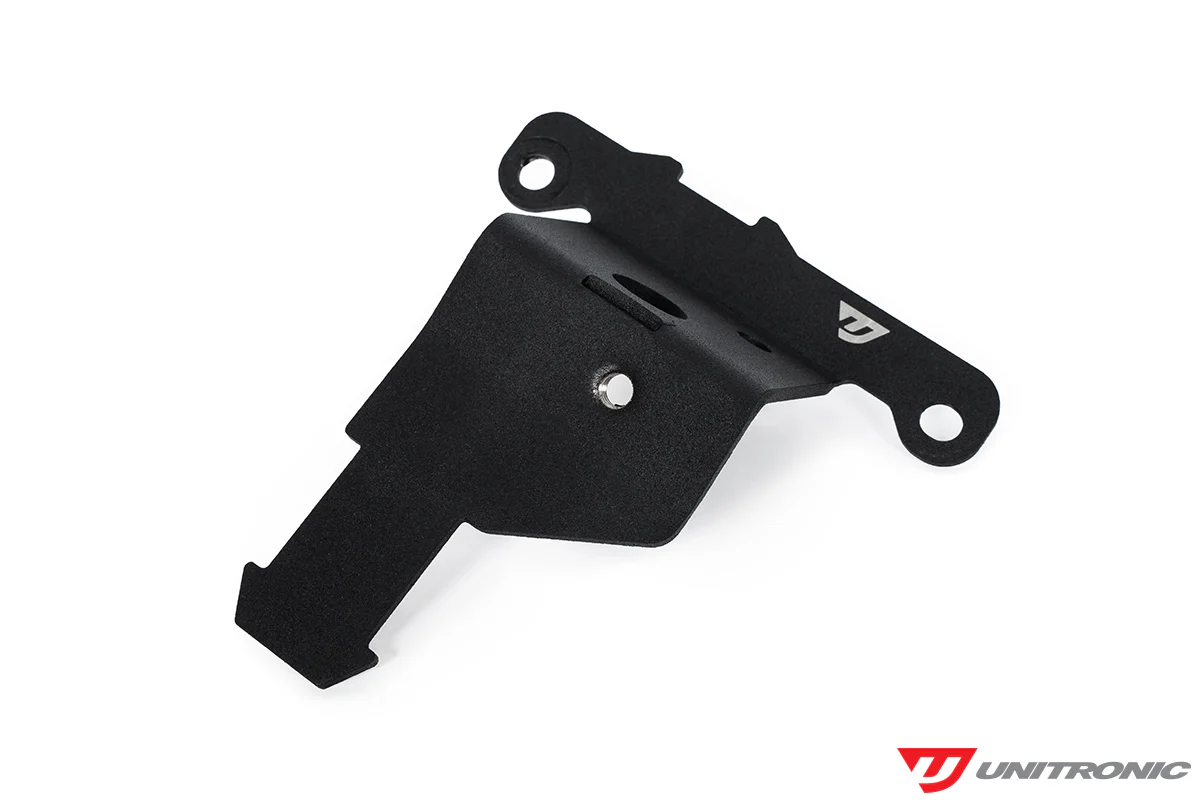

  • N75 Relocation Bracket
  • Hardware Kit
Recommended Software
  • Stage 1
  • Stage 1+
  • Stage 2
  • Stage 3

Related Hardware

  • Unitronic 4 inch Forged Carbon Fiber Intake System for 2.5TFSI EVO
  • Unitronic 4 inch Intake System for RS3 and TTRS, 2.5TFSI EVO
  • Unitronic 4 inch Turbo Inlet Elbow for 2.5TFSI EVO
  • Unitronic 4-inch Turbo Inlet Elbow for 8Y RS3
  • Unitronic 5-Inch Intake System
  • Unitronic 7-inch Tapered Cone Air Filter for 2.5TFSI EVO
Maximum Flow Without Compromise
Unitronic’s new Intake System features an all-aluminum 5” intake tube with custom tooled radius bends designed to maximize airflow to the turbocharger. Paired with a massive 7” velocity stack and matching air filter, it delivers class-leading flow.
Precise Fitment That Exceeds Expectations
Careful attention to under-hood packaging and fitment resulted in a true 5” Intake System that retains the factory engine mount grommets and maintains ample clearance near the brake booster to prevent unwanted chatter. A contoured aluminum front Air Guide shields the intake from radiant heat, while the durable wrinkle black powder-coated finish delivers an OEM+ look that exceeds expectations.
Modular Design Compatible With DV or BOV Setups
Platform-specific DV recirculation tubes and adapters for 2017–2018 and 2019+ models retain OEM diverter valve functionality. A modular intake tube provision allows use of the included CNC-machined billet aluminum DV port or a block-off plug for blow-off valve (BOV) setups.



Install
The Unitronic 5" Intake System for vehicles equipped with the 2.5 TFSI EVO engine is a direct bolt-on upgrade, designed for a straightforward installation with all necessary hardware included. Installation time will take approximately one hour including the removal of the factory intake and installation of your new Unitronic Intake system.

NOTE: Not compatible with the stock turbo inlet.
Select Add Unitronic DV Adapter Kit?
From $315.00

Original: $899.99

-65%
Unitronic 5" Intake System w/ Air Guide - Audi RS3 2017+ / TT RS 2018-2022

$899.99

$315.00

Product Information

Shipping & Returns

Description

Mandatory DV Adapter selection required unless using a BOV.

Unitronic's new super-high-flow 5" Intake System for 2.5TFSI® EVO (DAZ/DNW/DXH) vehicles maximizes airflow with unbeatable quality construction fitment aesthetics and turbo induction sounds.

Featuring a massive 7" velocity stack and 7" air filter this Intake System flows 292% more than stock and is the perfect upgrade for Stage 1 stock turbo vehicles up to Stage 3 hybrid level and beyond. Combined with Unitronic's Front Air Guide which closely follows the contours of the engine and modular DV or BOV provisions this system will exceed all of your expectations.

Fully compatible with the 8S TTRS® 8V.2 RS3® 8Y RS3 and 8Y.2 RS3 in conjunction with the Unitronic 4" Turbo Inlet Elbow.

NOTE: Mandatory DV Adapter selection required unless using a BOV (blow off valve).

Features / Benefits
  • Super-high-flow 5-inch aluminum intake system
  • Integrated 7" velocity stack (V-Stack)
  • Matching 7" high-flow air filter
  • Flows 292% more than stock
  • Durable wrinkle black powder-coated finish
  • Direct bolt-on installation (4" Turbo Inlet Required)
  • OEM DV or BOV compatible
  • Factory chassis mount integration
  • Platform-specific intake tube adapters
  • Optimized under hood packaging
Hardware Included
  • Unitronic 5" Intake Tube
  • Unitronic Air Guide
  • Unitronic 7" Air Filter
  • 4" to 5" Silicone Coupler
  • DV Port Fitting
  • Hex Block Off Plug
  • N75 Relocation Bracket
  • Hardware Kit
Recommended Software
  • Stage 1
  • Stage 1+
  • Stage 2
  • Stage 3

Related Hardware

  • Unitronic 4 inch Forged Carbon Fiber Intake System for 2.5TFSI EVO
  • Unitronic 4 inch Intake System for RS3 and TTRS, 2.5TFSI EVO
  • Unitronic 4 inch Turbo Inlet Elbow for 2.5TFSI EVO
  • Unitronic 4-inch Turbo Inlet Elbow for 8Y RS3
  • Unitronic 5-Inch Intake System
  • Unitronic 7-inch Tapered Cone Air Filter for 2.5TFSI EVO
Maximum Flow Without Compromise
Unitronic’s new Intake System features an all-aluminum 5” intake tube with custom tooled radius bends designed to maximize airflow to the turbocharger. Paired with a massive 7” velocity stack and matching air filter, it delivers class-leading flow.
Precise Fitment That Exceeds Expectations
Careful attention to under-hood packaging and fitment resulted in a true 5” Intake System that retains the factory engine mount grommets and maintains ample clearance near the brake booster to prevent unwanted chatter. A contoured aluminum front Air Guide shields the intake from radiant heat, while the durable wrinkle black powder-coated finish delivers an OEM+ look that exceeds expectations.
Modular Design Compatible With DV or BOV Setups
Platform-specific DV recirculation tubes and adapters for 2017–2018 and 2019+ models retain OEM diverter valve functionality. A modular intake tube provision allows use of the included CNC-machined billet aluminum DV port or a block-off plug for blow-off valve (BOV) setups.



Install
The Unitronic 5" Intake System for vehicles equipped with the 2.5 TFSI EVO engine is a direct bolt-on upgrade, designed for a straightforward installation with all necessary hardware included. Installation time will take approximately one hour including the removal of the factory intake and installation of your new Unitronic Intake system.

NOTE: Not compatible with the stock turbo inlet.
